Transport toner pipe spillage Follow
1 - Remove the HV1 board,
2 - Remove the PCRB board
3 - Remove the big round plates
4 - Pull out completely the process unit with the drums and developer

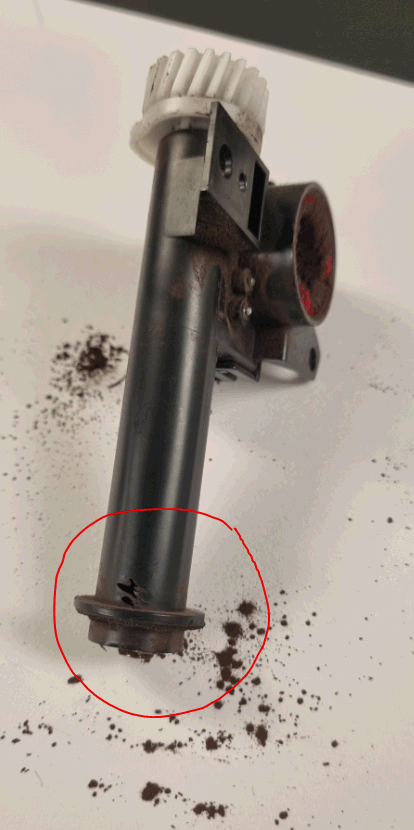

5 - Remove the drum drive unit assembly6 The pipe toner pipe should be in the top right side of the machine.
see the pictures below
