Error J-1617/J-1620 (PF-707m) Follow

Jam Code:

J-1617/J1620

Classification:

Paper Jamming on Tray 3 and 4 only.

Cause:

During operation, Within a specified period of time after the paper feed sensor/2 (PS6) becomes active, the exit sensor/2 (PS27) does not become active. Broken Belt in paper feed drive unit

Solution:

• Open the PF front door and the vertical conveyance door. Then remove any jammed paper.
• Clean and blower the sensor PS27 and PS6

Next Possible Solution:

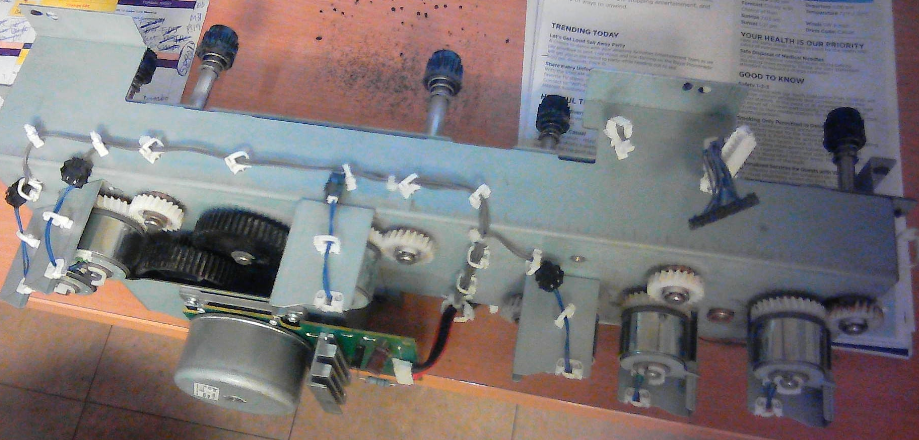

• Check the paper feed drive unit, if the belt is still good and the plastic roller.

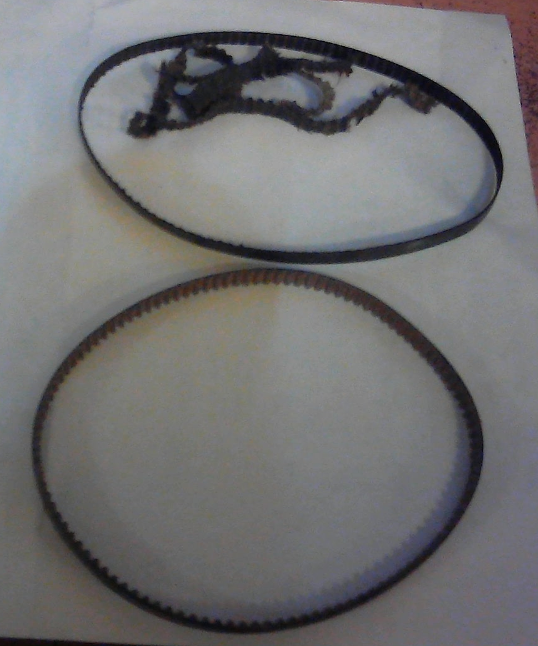

• Replace the paper feed drive unit belt.
