Error Code Solution: C-3303 Follow

Ohji Miranda

Problem

Error Code C-3303, Issue with fuser Fan FM33 and FM34

Solution

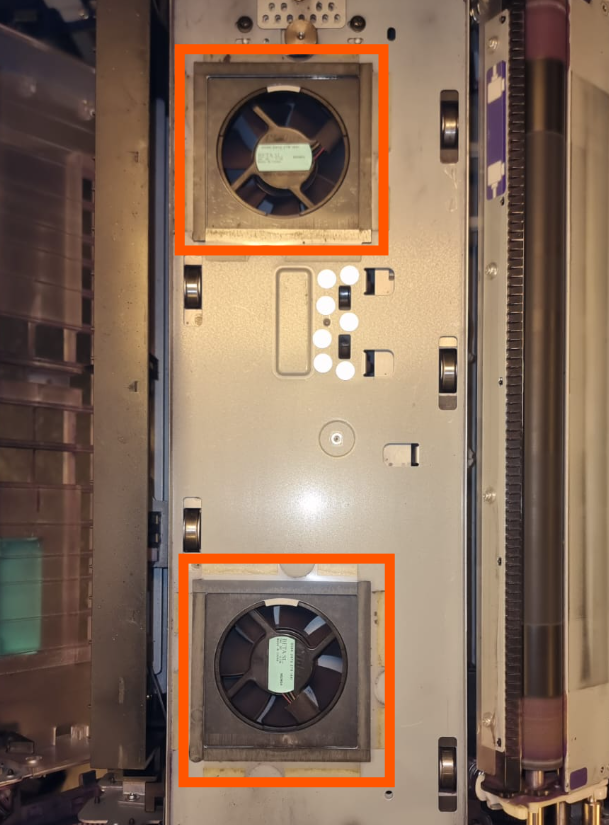

Replace fan FM33 and/or FM34

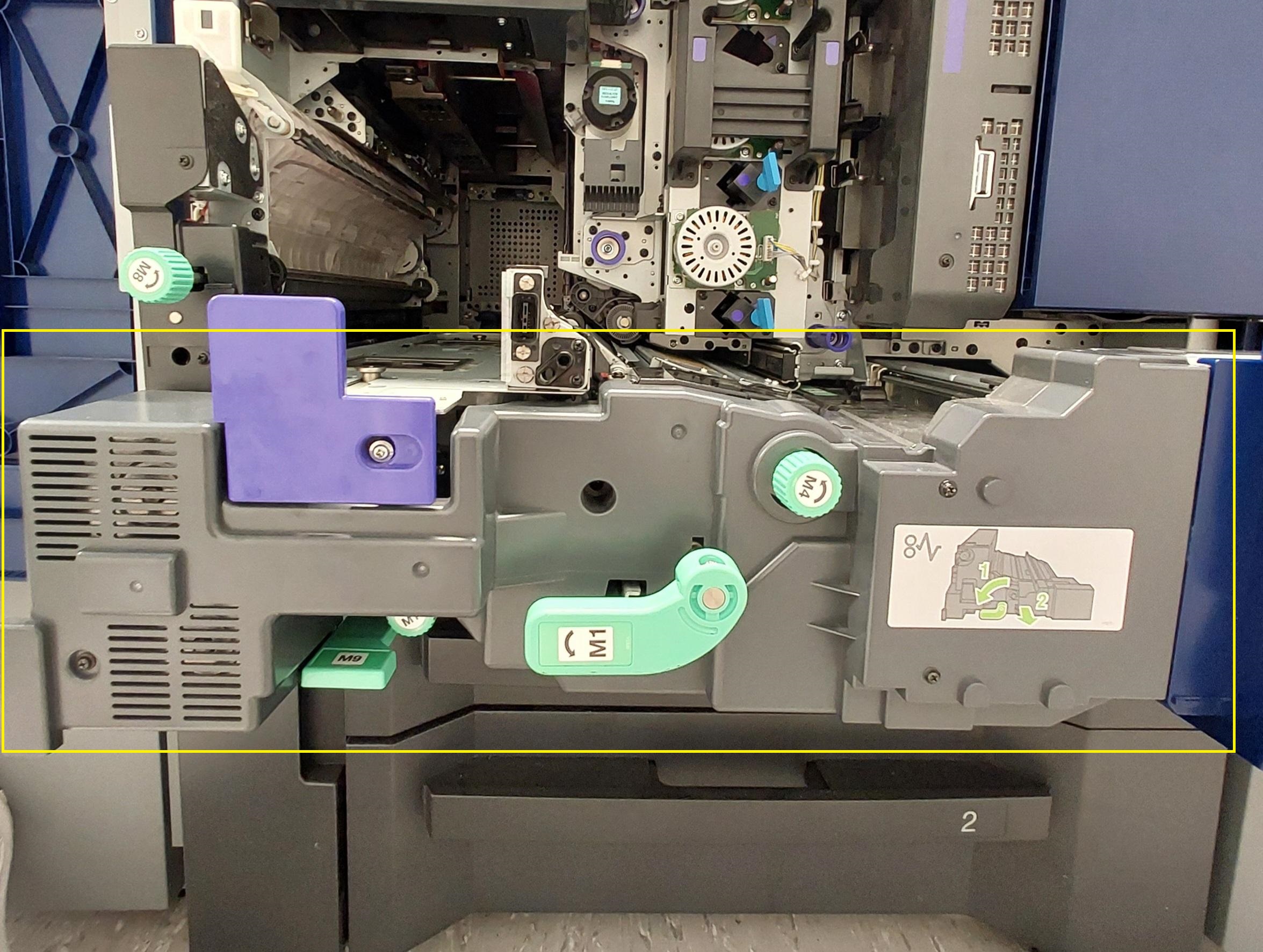

To access the fan

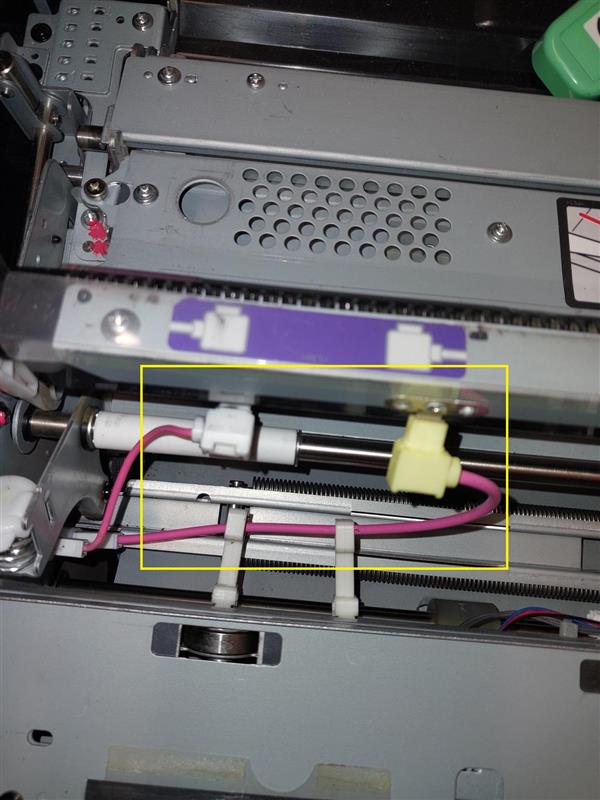

Disconnect the 2nd transfer unit connectors

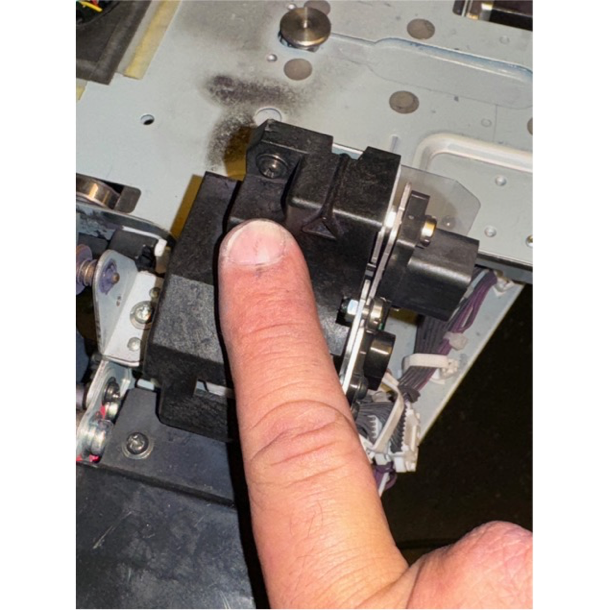

Remove the cover screw

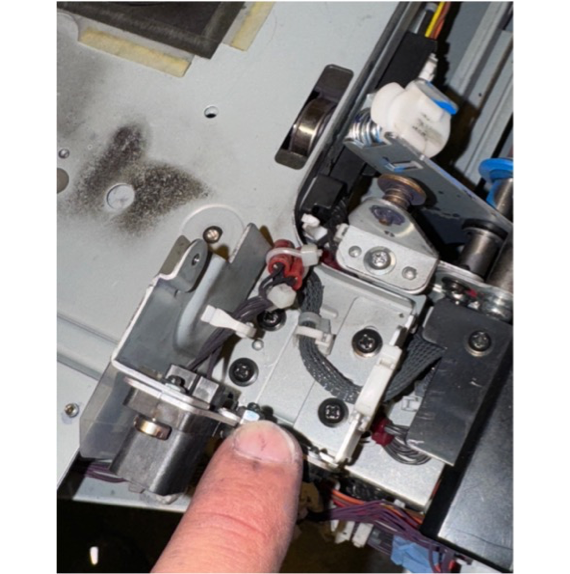

Remove 4 screws

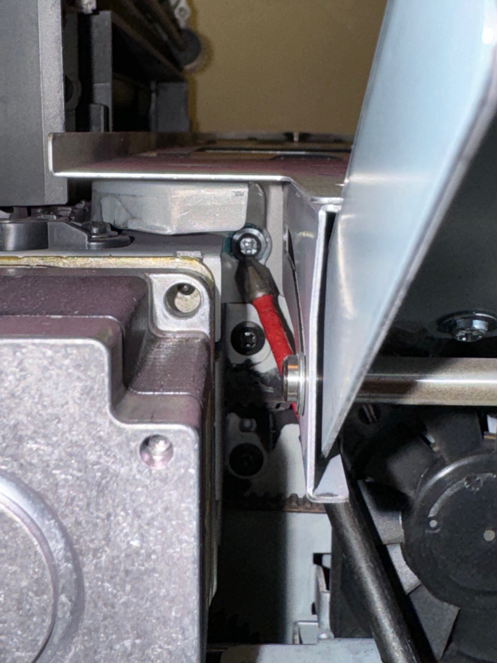

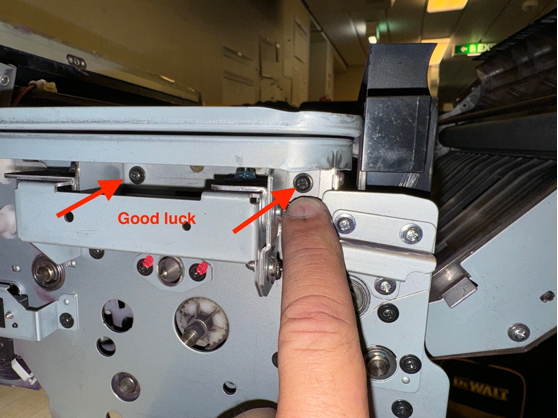

Remove the two screws in the back. you can use a mirror or phone camera to locate it

Remove the duplex plastic cover

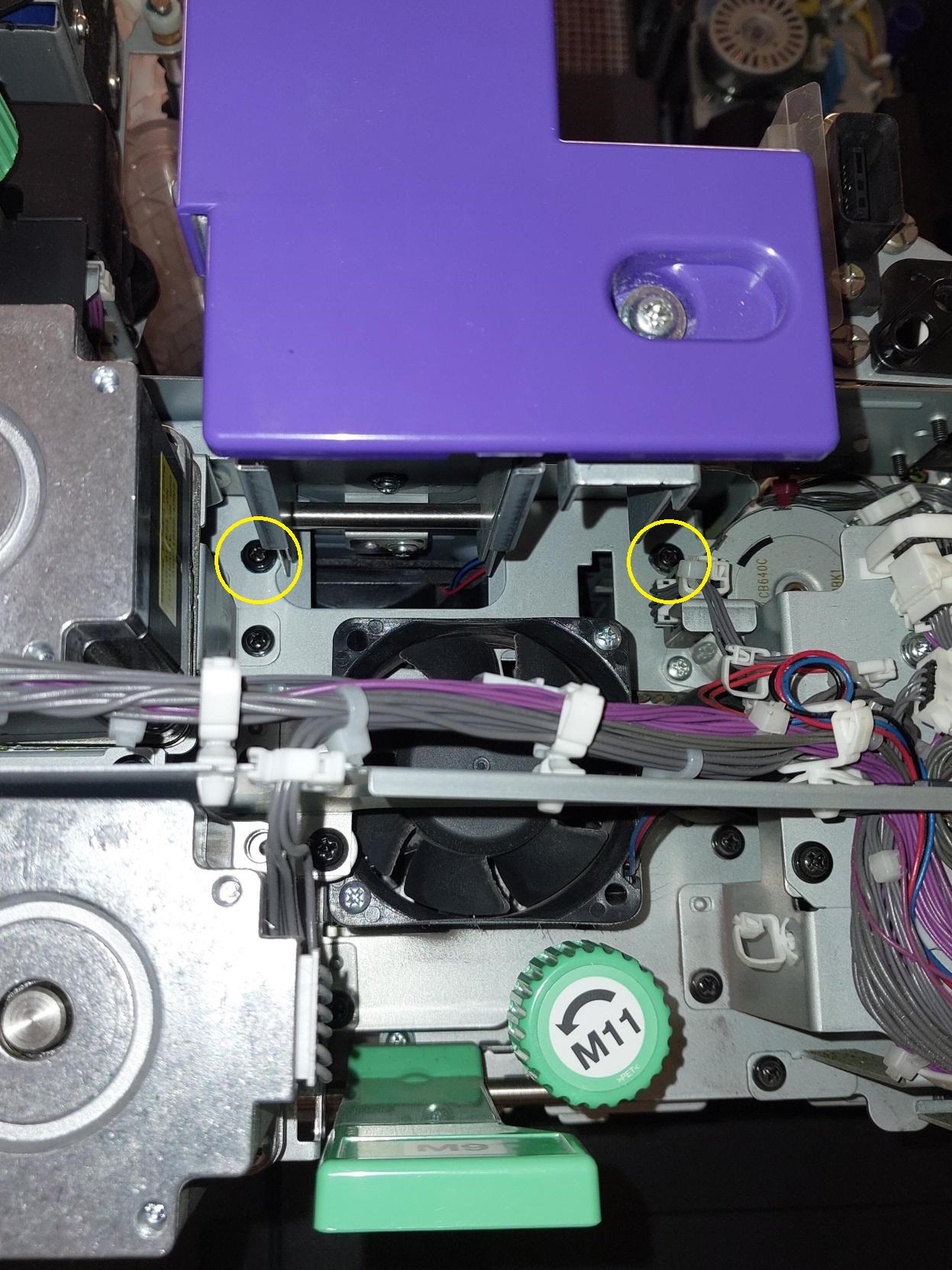

Remove 2 screws

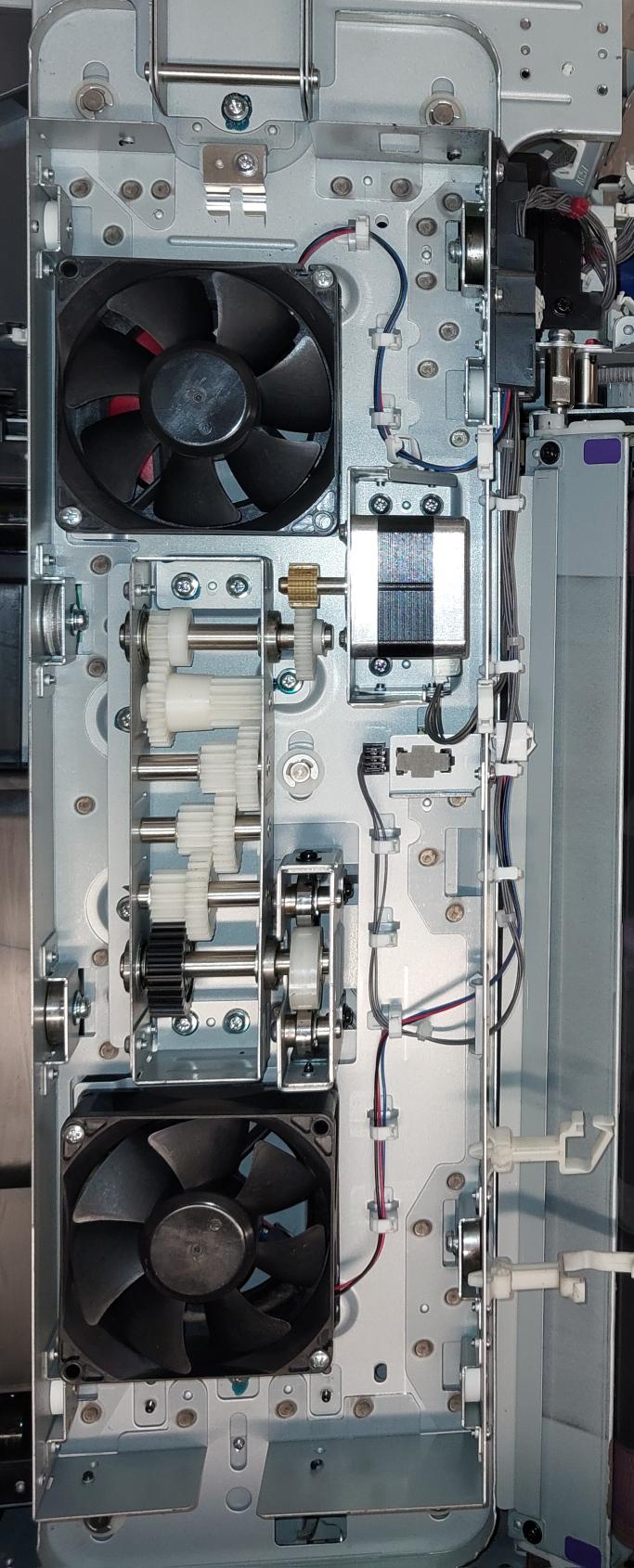

Then, Lift the the whole assembly and flip it upside down

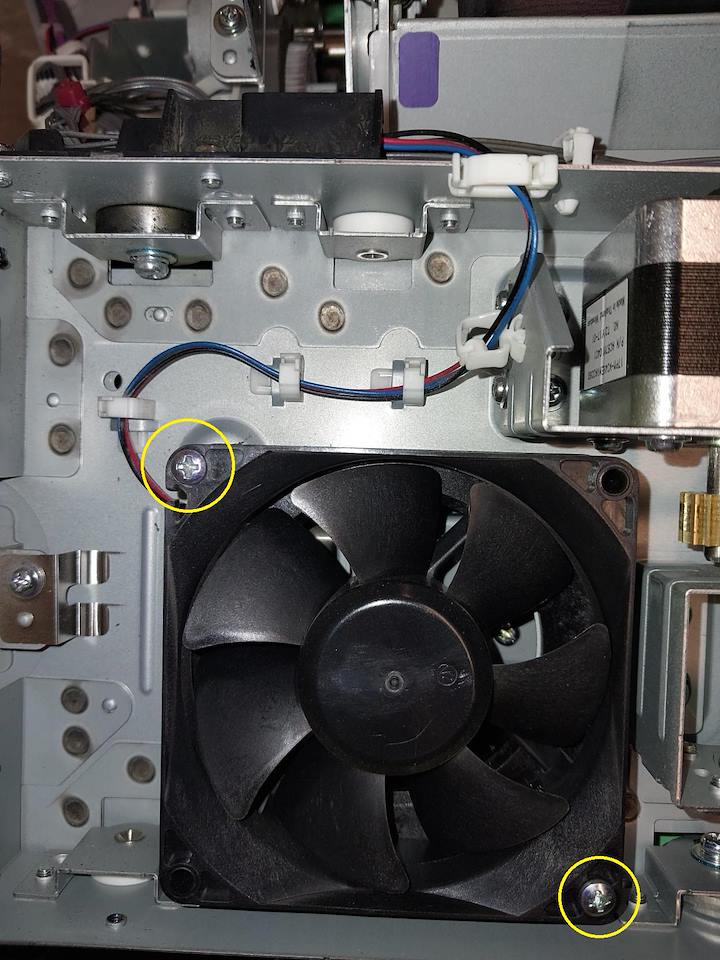

Remove 2 Fan screws

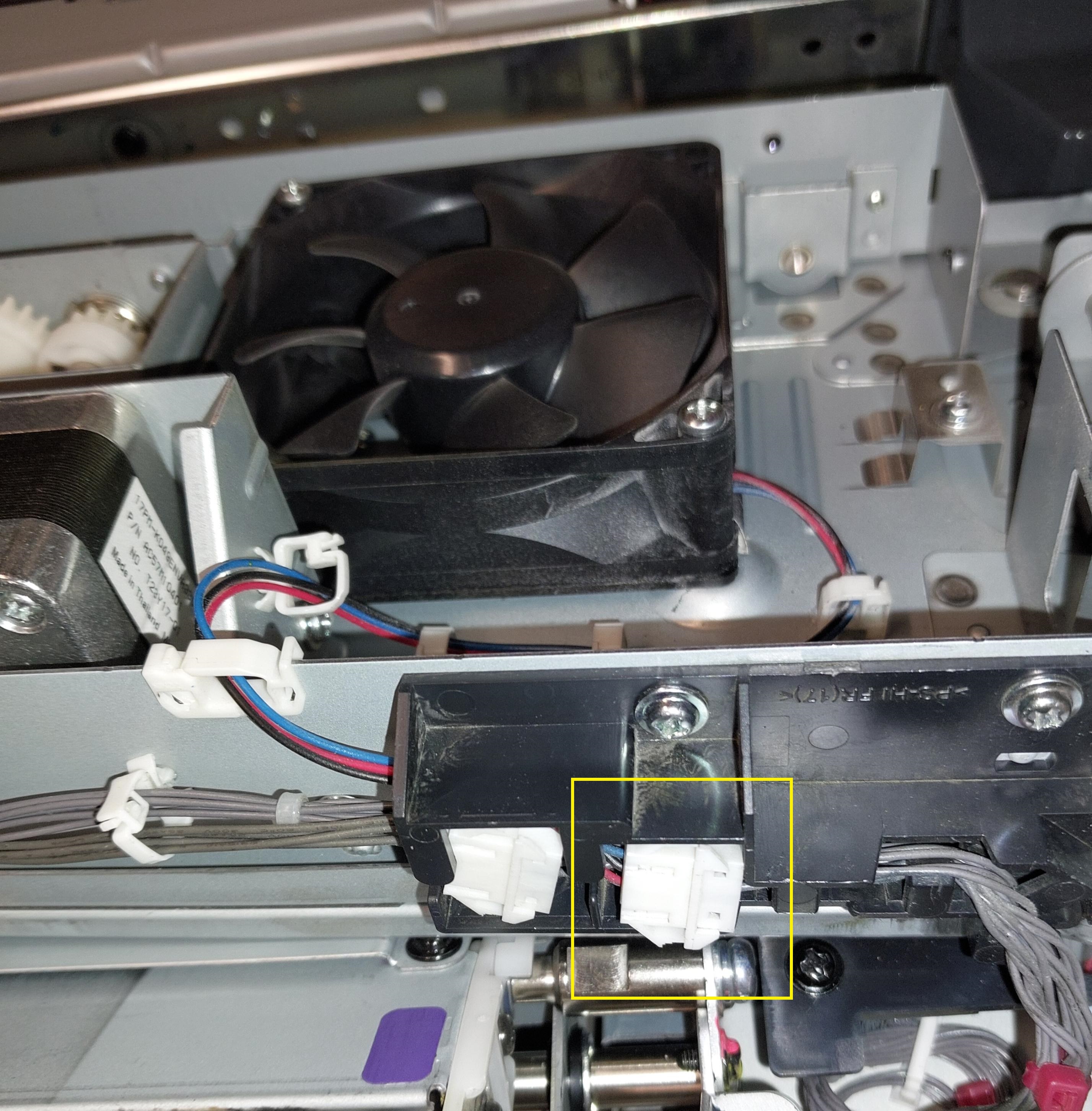

Disconnect the Connectors and remove the wiring from the harness
