Error Code Solution: C-0236 Follow
Cause
Within a specified period of time after the ADU roller pressure release motor (M33) starts returning to the home position, the ADU roller pressure release home sensor (PS5) does not become active.
Solution
Clean PS5 sensor thoroughly and the positioning part should be on the down position.
Video link for the correct position of the positioning part: Positioning part - correct position.mp4

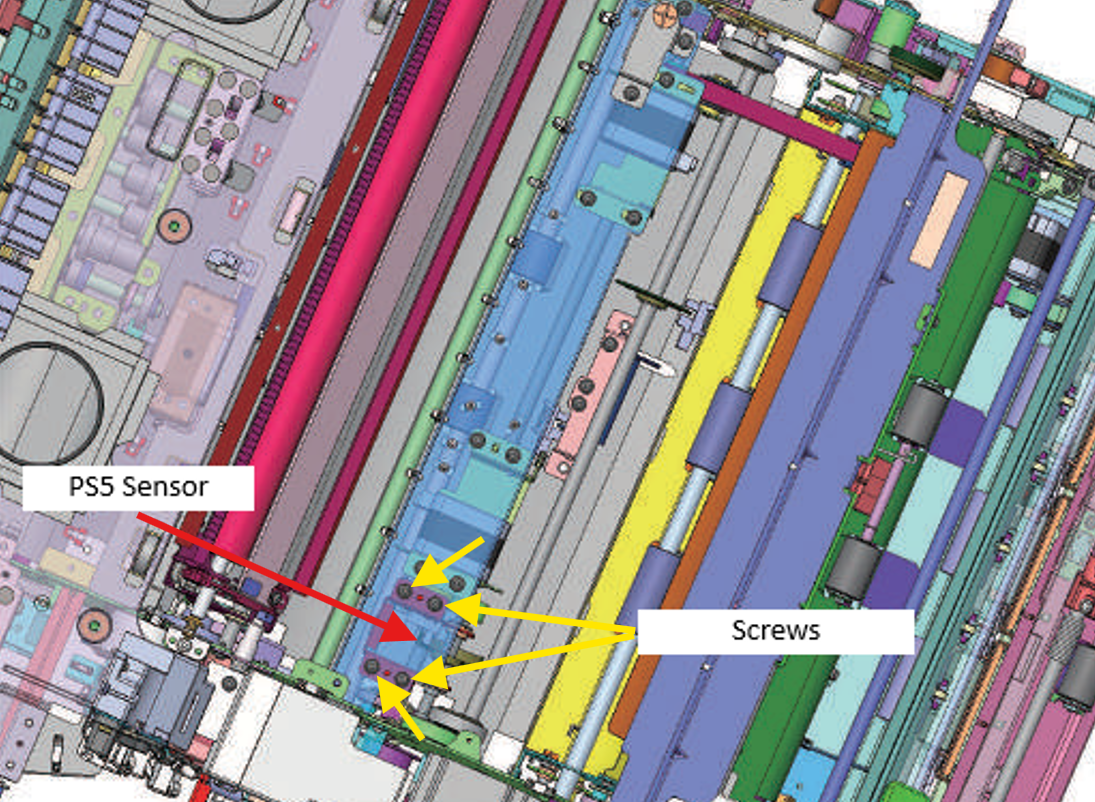

To clean the PS5 sensor, remove the registration unit, unscrew the four marked screws(yellow arrow), disconnect the sensor connector, and take out the entire sensor housing.
