Jam Solution: J-1631 Follow
Jam Code:
J-1631
Classification:
PF-707m
Cause:
Tray 3 is not working. Paper is not exiting from the tray itself after a job was sent. Paper is stuck and won't even exit the tray and gives
Within a specified period of time after the suction belt clutch/1 (CL15) becomes active, the paper feed sensor/1 (PS2) does not become active.
Solution:

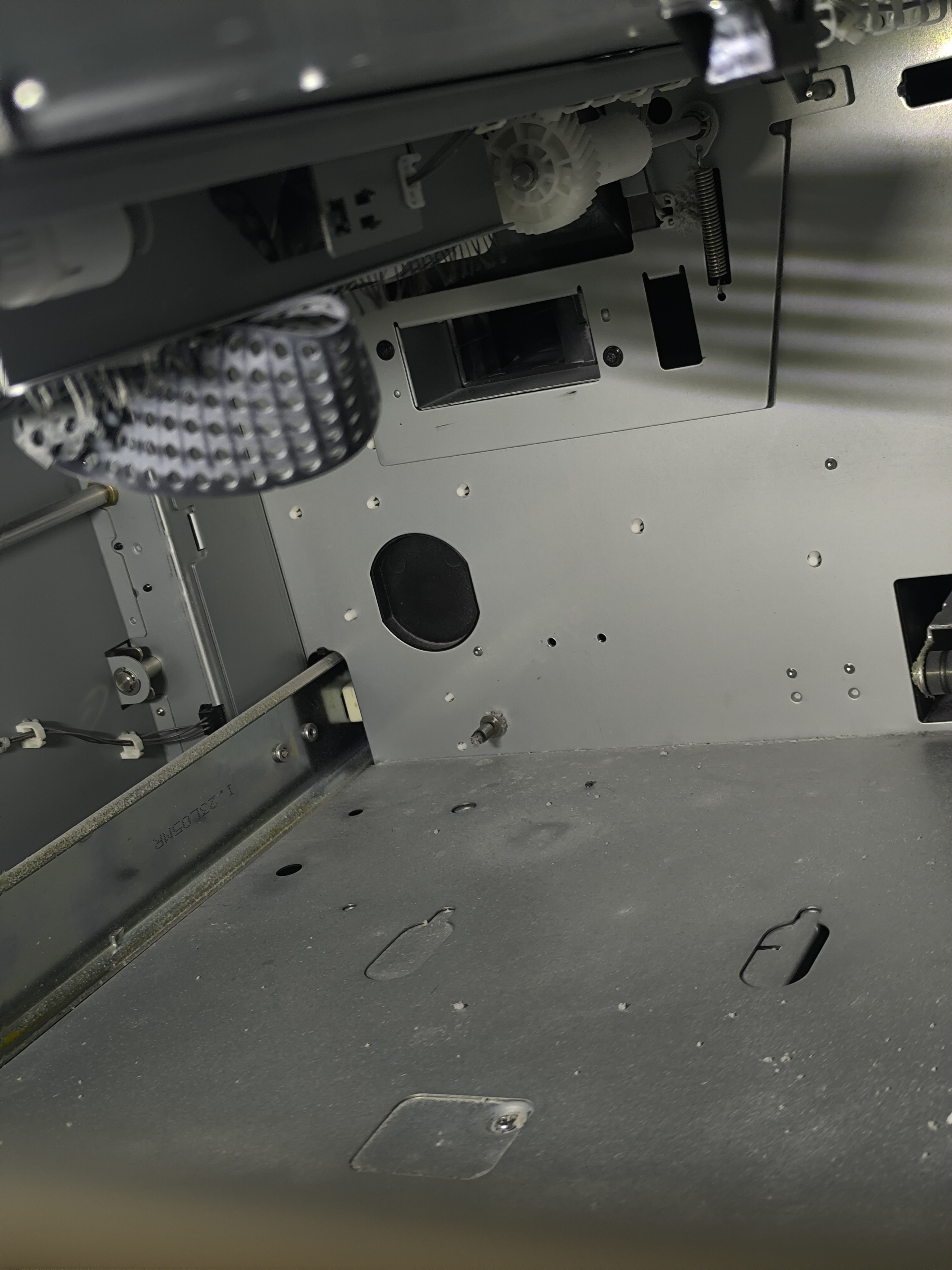

- Misalignment for the belt, make sure to place it back on the correct position.

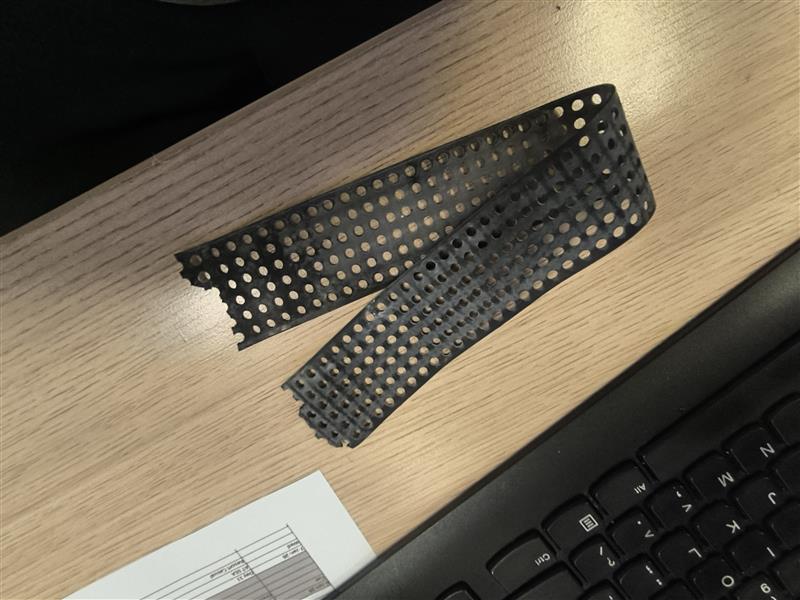

- Check the suction belt of the PF-707m. for any damage. replace if needed.
