C368 Black Faded Follow

Ohji Miranda

Problem

Even after replacing drum, developing unit and transfer belt, cleaning the dust proof glass. black is still faded.

Solution

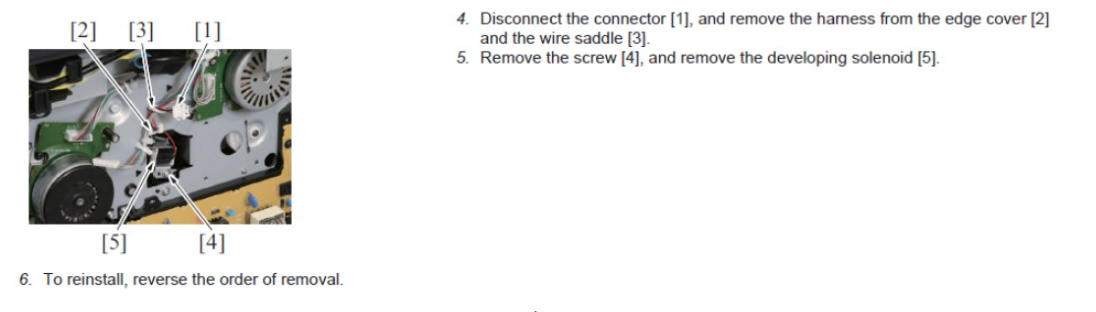

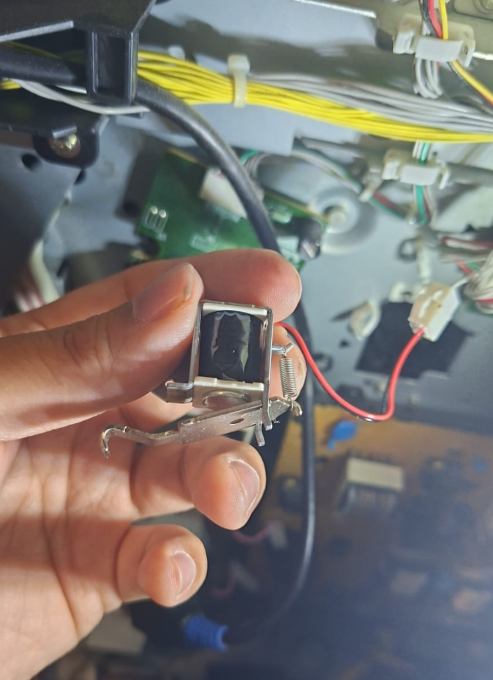

Clean the Developing Solenoid SD4

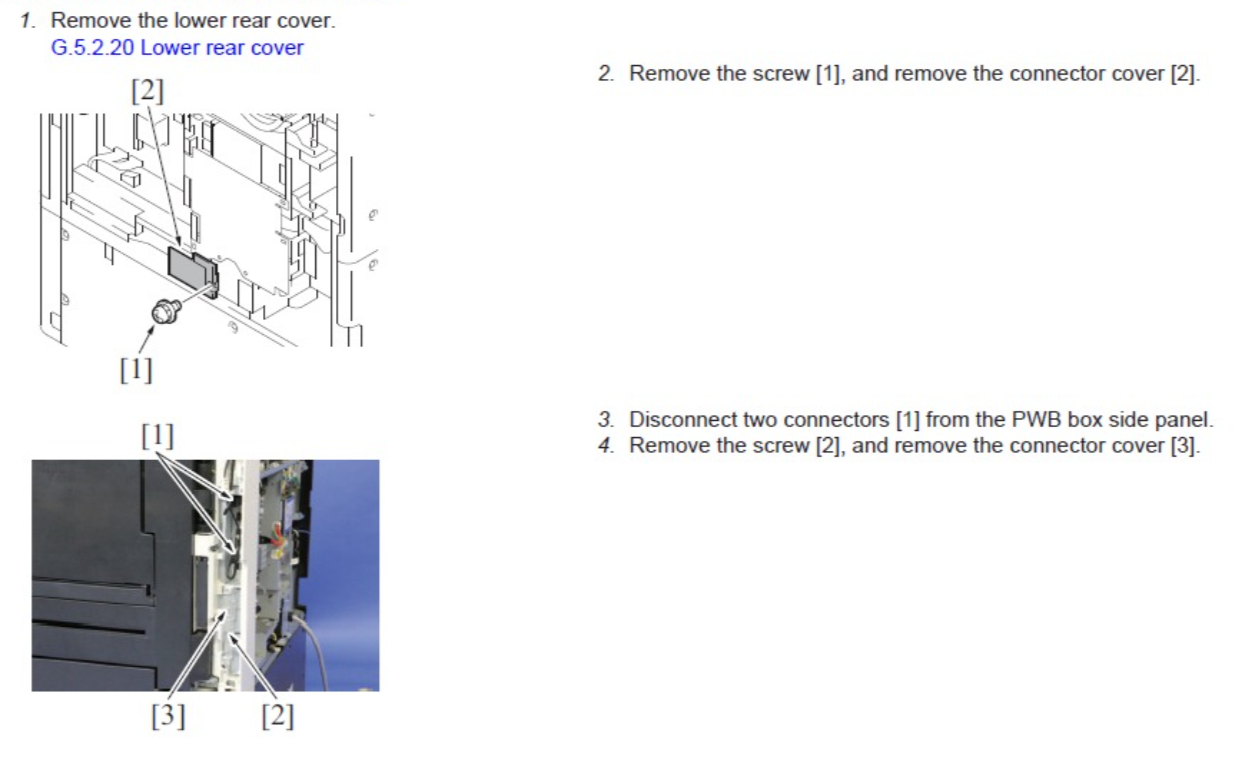

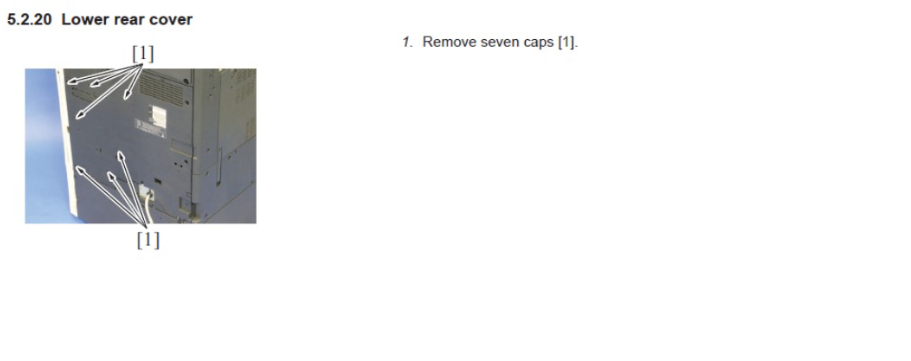

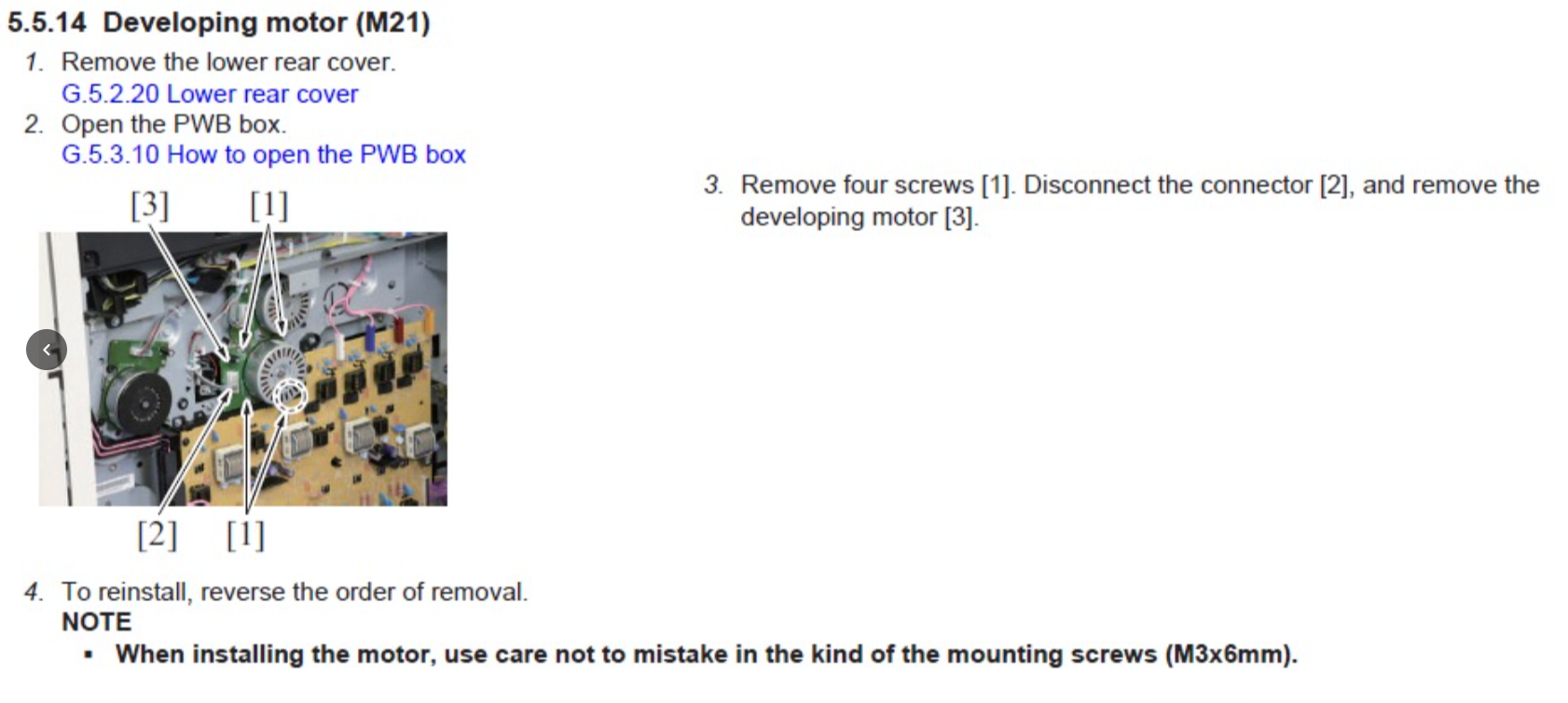

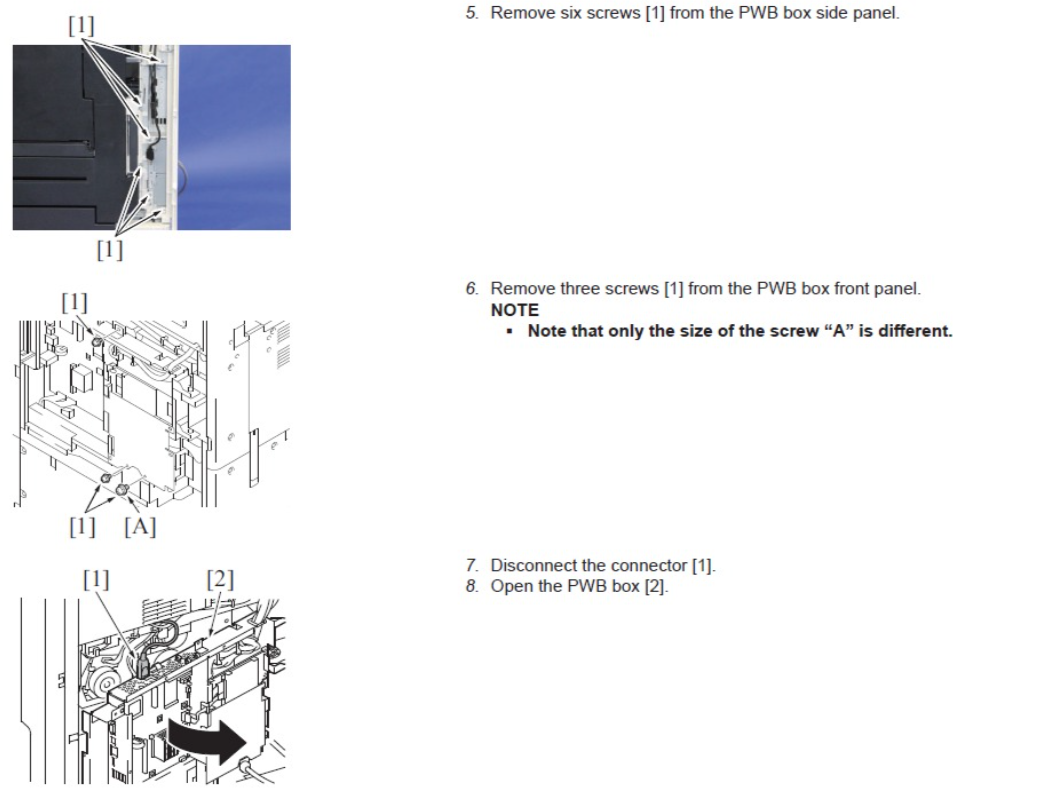

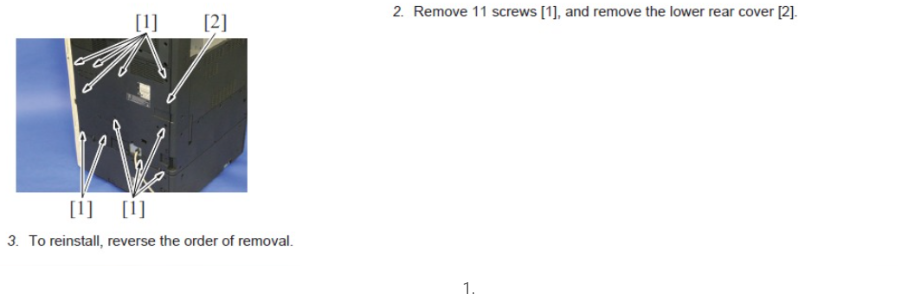

Procedure
