Replacement of tray 2 feed roller, pick-up roller, separation roller for KM C368,C308,C258 Follow
Parts:
Tray 2 Feed Roller, Tray 2 Pick-up Roller, Tray 2 Separation Roller
Procedures:
- Open the right door.
- Remove the tray 1.
- Remove the tray 2.

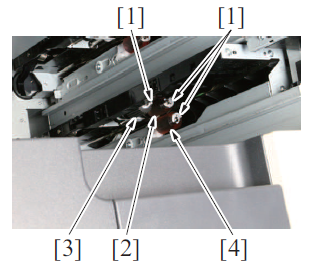

- Remove the C-clip [1] each and remove the tray 2 feed roller [2], tray 2 pickup roller [3] and tray 2 separation roller [4].
- To reinstall, reverse the order of removal.
- Select [Service Mode] -> [Counter] -> [Life] and clear the count of [2nd.]
