Replacement of feed roller, pick-up roller, separation roller for KM C368,C308,C258 Follow
Parts:
Replacing the feed roller, pick-up roller, separation roller
Procedures:
Open the right door.
Remove the tray 1.
Remove the tray 2.

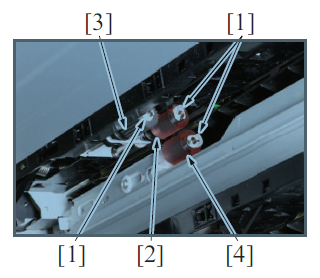

Remove the C-clip [1] each, and remove the feed roller [2], pickup roller [3] and separation roller [4].
To reinstall, reverse the order of removal.
Select [Service Mode] -> [Counter] -> [Life] and clear the count of [1st.].
