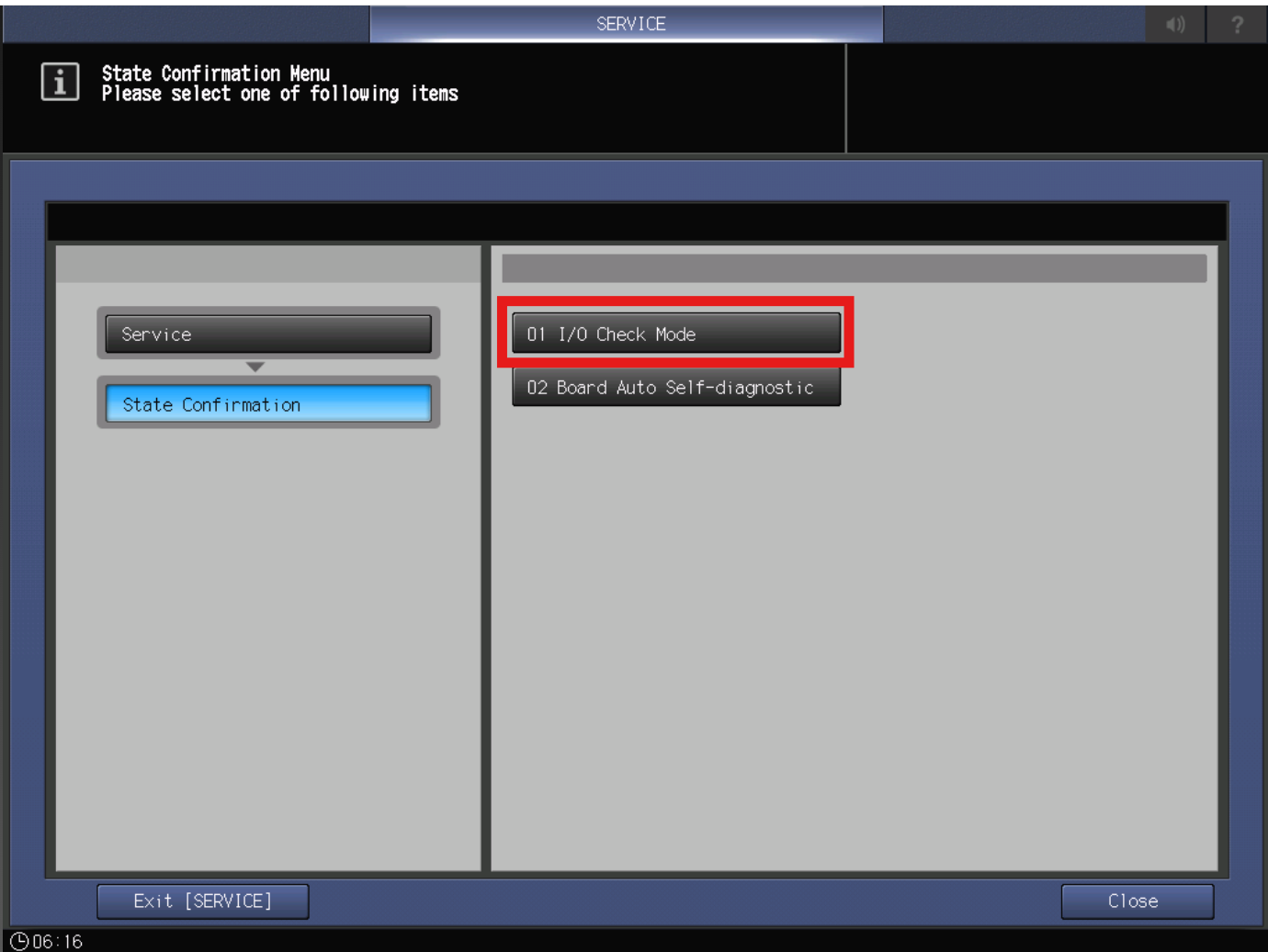

Go to Service Mode > State Confirmation > I/O Check Mode

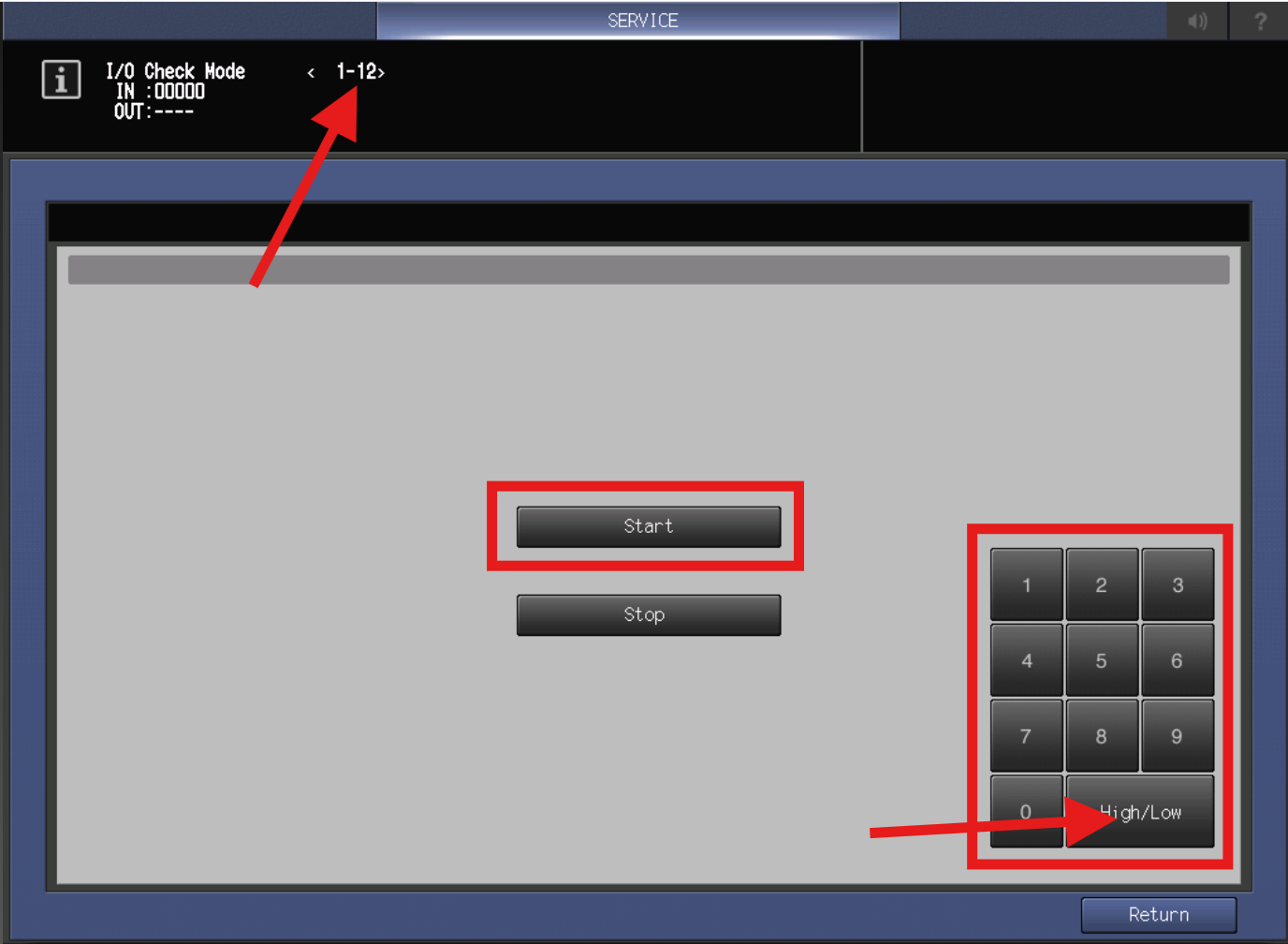

In the screen shot below you will see the I/O Code with value 1-12. Change it by typing on the keypad, click High/Low to switch from 1st value to 2nd value and vice versa. Click Start to do an output check on the part.
Here are the most common I/O Codes that we use:

Toner Supply Assy
*Make sure to pull out all the toner bottle before proceeding with the I/O check
1-12 | Toner bottle motor (M15)

Paper Feed Drive Assy
28 - 00 | Paper feed motor/Up (M11)
28 - 03 | Paper feed motor/Lw (M12)

Drum Drive Assy
41 - 03 | Drum motor/Y (M1)
41 - 08 | Drum motor/M (M2)
41 - 13 | Drum motor/C (M3)
41 - 18 | Drum motor/K (M4)

Developing Drive Assy
50 - 03 | Developing motor/Y (M5)
50 - 08 | Developing motor/M (M6)
50 - 13 | Developing motor/C (M7)
50 - 18 | Developing motor/K (M8)

Intermediate Transfer Belt
41 - 23 | Intermediate transfer motor (M9)
48 - 00 | 1st transfer pressure release motor (M10)

Registration Section
26 - 03 | Loop motor (M42)

Fusing Section
47 - 03 | Fusing motor (M46)

PF-707 Unit
28 - 36 | Registration motor (M11)
28 - 12 | Paper feed belt motor (M1)
28 - 10 | Vertical conveyance motor (M2)
28 - 11 | Horizontal conveyance motor (M3)
26 - 10 | Loop motor/1 (M5)
26 - 12 | Loop motor/2 (M6) (Tray3 only)
