Replacing the Waste Toner Box KM C4070/C4080 Follow
Parts:
Waste Toner
Procedure:

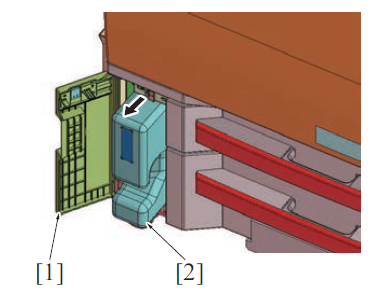

Open the waste toner box door [1] and pull the waste toner box [2].

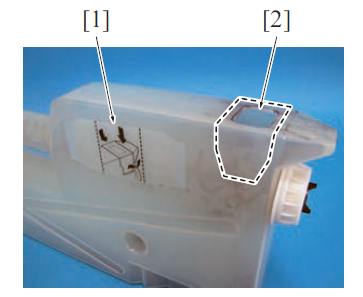

Remove the label [1] from the waste toner box and then cover the entrance of the waste toner box [2].
Reinstall the preceding parts following the removal steps in reverse.
After you replace the waste toner box, conduct the following steps.
• For the waste toner box: The counter reset of the special parts counter number 1
