Replacing the Toner Filter KM C4070/4080 Follow

Parts:

Replacing the Toner Filter

Procedure:

• Go to the back of the machine and look at the bottom left, and you will see, the cover of the toner filter.

• Take out the screw, follow by the cover.

• Pull out the toner filter and replace it with the new one.

• Remove the label [1] of the filter box and then cover the toner suction inlet [2]
  with it. Note: Make sure to close the toner suction inlet with the label so that the
  toner in the filter box does not scatter.

• It is very important to reset the counter of the Toner Filter, for you to know when this specific part has been changed. Follow the procedure on how to reset the counter.

• Power the machine OFF from the main switch leaving the sub switch ON.

• Turn the main power switch ON while pressing the Utility/Counter key. Keep holding it till the comes up in Service mode.

• 04 - Counter / Data

• 03 - Parts Counter

• 01 - Special Parts

• 02 - Waste Toner / Filter

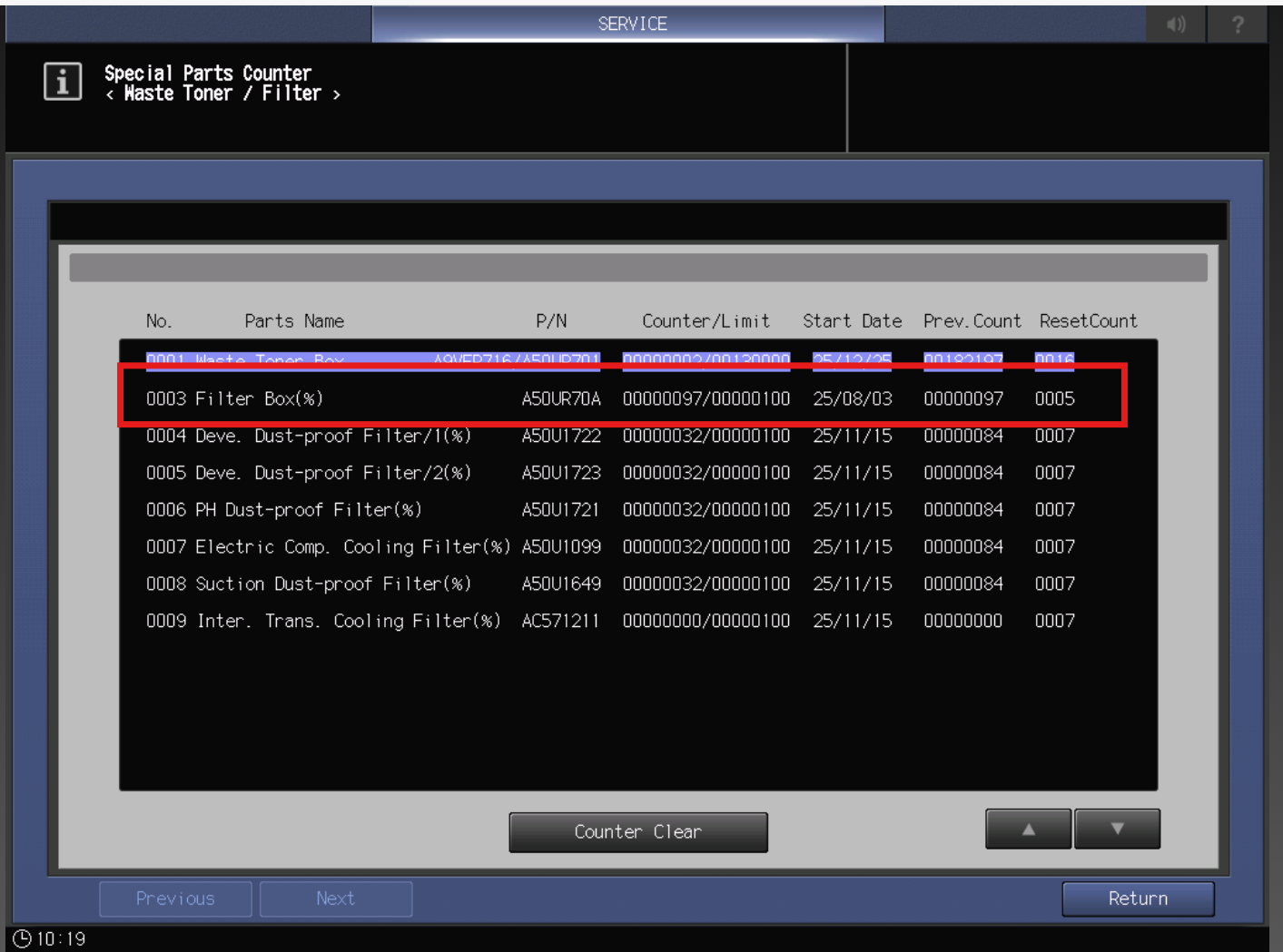

• 003 Filter Box, move arrow down to highlight

• Select the "Counter Clear" button to reset the count

• Select "Return Button"

• Exit out of service
